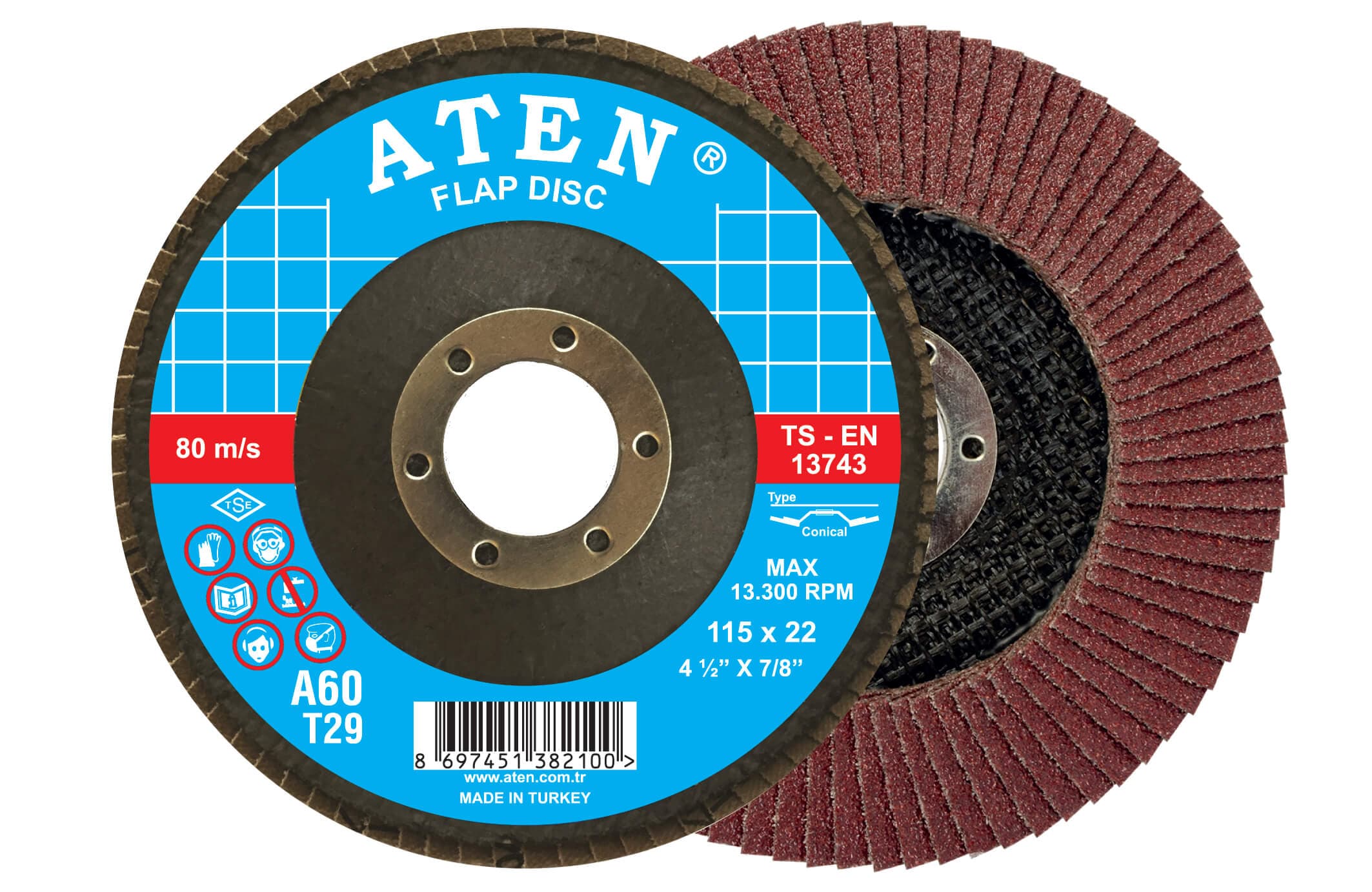

AL.OX. Flap Discs for Metal
Application Areas
»Flap discs are able to provide the same performance as many different fibre discs do.
»Therefore Flap discs are severe time saver as far as assembly and disassembly are concerned.
»Flap discs can be used for rough grinding and also for surface cleaning.
»Flat type flap discs (T27) can be used for cleaning and grinding of flat surfaces.
»Conical type flap discs (T29) can be used for cleaning and grinding of materials with angular and non-uniform surfaces.
»Double side flap discs are available and produced upon the receipt of an order.
»(A)-Flap Discs are produced from Aluminum Oxide.
»Velocity: 80 m/sec.
Specifications
Type 29
Type 27
Type 27 HD
| Dimensions | Firm Code | Explanation | Grit | Pieces in Box | Pieces in Master Carton | Master Carton Weight (kg) | Barcode |
|---|---|---|---|---|---|---|---|
| 100 x 16 T27/T29 | FPA4700 | Flap Disc P36-40-60-80-120 | 40 | 10 | 200 | - | 8621628294693 |
| 100 x 16 T27/T29 | FPA4701 | Flap Disc P36-40-60-80-120 | 60 | 10 | 200 | - | 8621628294709 |
| 100 x 16 T27/T29 | FPA4702 | Flap Disc P36-40-60-80-120 | 80 | 10 | 200 | - | 8621628294716 |
| 115 x 22 T27/T29 | FPA4220 | Flap Disc P36-40-60-80-120 | 40 | 10 | 120 | 11 | 8681628288962 |
| 115 x 22 T27/T29 | FPA4225 | Flap Disc P36-40-60-80-120 | 60 | 10 | 120 | 11 | 8681628200045 |
| 115 x 22 T27/T29 | FPA4230 | Flap Disc P36-40-60-80-120 | 80 | 10 | 120 | 11 | 8681628288685 |
| 125 x 22 T27/T29 | FPA4235 | Flap Disc P36-40-60-80-120 | 40 | 10 | 120 | 12 | 8681628288753 |
| 125 x 22 T27/T29 | FPA4240 | Flap Disc P36-40-60-80-120 | 60 | 10 | 120 | 12 | 8681628288807 |
| 125 x 22 T27/T29 | FPA4718 | Flap Disc P36-40-60-80-120 | 80 | 10 | 120 | 12 | 8621628294723 |
| 180 x 22 T27/T29 | FPA4250 | Flap Disc P36-40-60-80-120 | 40 | 10 | 40 | 8 | 8681628288906 |
| 180 x 22 T27/T29 | FPA4255 | Flap Disc P36-40-60-80-120 | 60 | 10 | 40 | 8 | 8697451388951 |
| 180 x 22 T27/T29 | FPA4260 | Flap Disc P36-40-60-80-120 | 80 | 10 | 40 | 8 | 8681628288999 |
